Digital Dashboard

  • Features/Functions:

    • Canvas Layout Selection
      (options for both landscape and portrait orientations)
    • Three Customizable Message Fields
    • Time Zone Clocks
      (analog and/or digital, style, name, size, date, color, background, border, single or multiple groups)
    • System Status Indicators
      (audio/video call, content sharing, microphones, speakers, FPCON, DEFCON, PED status, recording, system alert)
    • Background Theme Selection
      (graphics, solid colors, upload custom images)
    • Departmental/Agency Branding
      (upload custom emblems/images)
    • Custom Border
      (color, size, opacity)

  • Specifications:

    • Supports any size/type of display with a digital input
      (mini DisplayPort output)
    • Automatically resizes based on display/window aspect ratio
      (optimal support for 16:4.5 and 21:9)
    • Encrypted and authenticated API for AV control systems
      (support for TLS 1.2 & 1.3)
    • NTP server and client support
      (with symmetric encryption)
    • Includes a highly accurate Real Time Clock w/ battery backup
    • Small form factor hardware device
      (no WiFi, Bluetooth, or RFID)
    • Secure By Design
      (centralized management, real time alerts, syslog, audit logging, support for SSL Certificates, 802.1X, & FIPS 140-2)
    • RMF Compliant

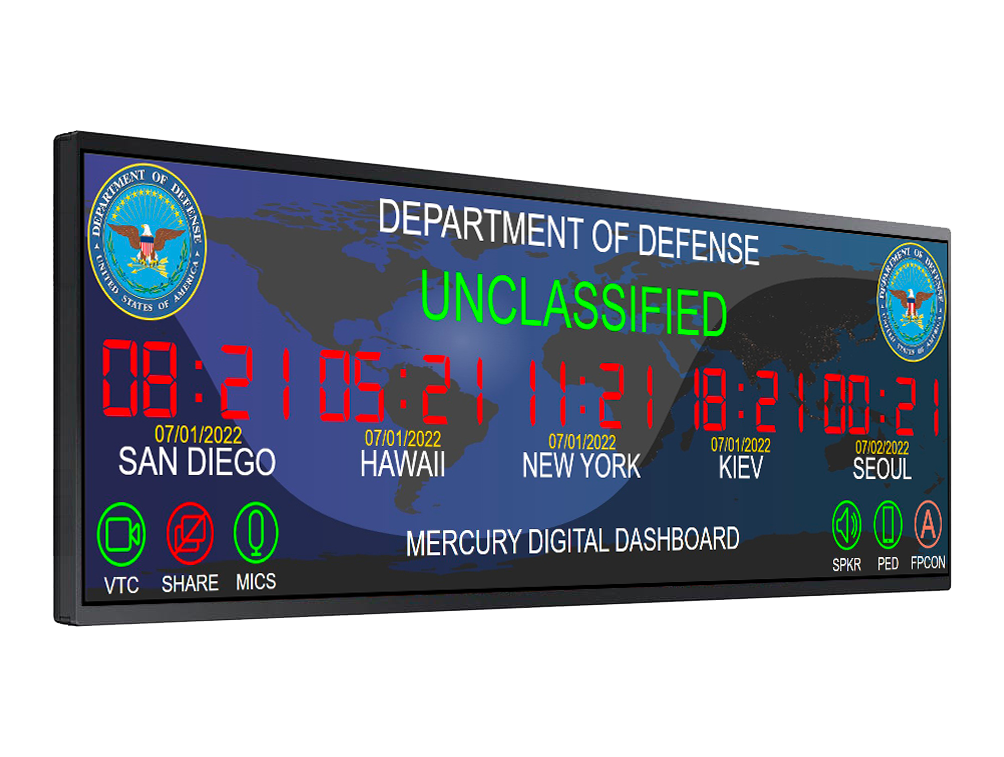

Freeport Technologies Mercury is a customizable digital dashboard which provides visual operational awareness in secure AV environments. Configuration and deployment do not require the use of a custom software application, graphical design tools, or computer programming skills.

Each endpoint can be individually configured via the built-in web UI to include some or all of the provided features. Features include customizable message fields, time zone clocks, system status indicators, branding images, background themes, and layout selection. Showing/hiding a specific element will impact all the other elements on the dashboard. For example, removing specific message fields and/or status indicators will provide the ability to display more clocks.

Customization options include the ability to hide/show specific elements, define text font/size/color/animation/background/border, display analog and/or digital clocks (individual zones or groups), choose clock style, color, define time zone name/color, configure system status indicator text/color by state (disabled/in-active/active).

The Mercury web UI provides the ability to configure network and security related settings, update firmware, set the date/time, setup an NTP server or client, view/download log files, and export/import the dashboard configuration file for multiunit deployment.

All units include a highly accurate Real Time Clock with battery backup.  Mercury can be configured as an NTP server (w/ encryption) for use by all other connected AV devices.


Specifically designed to manage security risks and reduce overall implementation cost
